UT_Rover
Designed to ensure safe and accurate non-destructive inspections in hazardous or uncertain areas
Inspect tank roofs without sending anyone onto them
UT_Rover eliminates confined space entry and exposure to ATEX zones for floating and fixed roof inspections. The operator stays on the ground while the robot inspects in their place.
No human entry
Eliminate confined space, EX zone, and uncertain roof risks. Compliant with the strictest HSE requirements.
Long-range remote operation
100 m in UT, 1 km in visual mode. 4G compatible on covered sites. The operator controls the system from a safe area.
Modular
UT, visual inspection, brushing, gas detection. Each mission can be configured with the modules required.
A complete inspection robot for inaccessible areas
Designed, developed, and qualified in close partnership with HSE and inspection teams from major industrial clients.
A-Scan & B-Scan
Spot or continuous thickness measurements. 13 mm 5 MHz dual-crystal probe. Accuracy ± 0.15 mm.
Magnetic system for all curvatures
Custom-designed magnetic system. Crosses lap welds and curved plates up to 10% curvature.
IP67 — all-weather
Sealed and reinforced connectors. Operational in rain and strong winds. Resistant to residue and foam.
HD / Ultra HD camera
Long-range visual inspection up to 1 km. Photo and video documentation of inspected areas.
EX zone compatible
Full ATEX risk study and integration. Onboard gas detector with alarm reporting to the ground station.
Automated reports
Real-time A-Scan and B-Scan acquisition. Automatic Excel export. Post-inspection data editing available.

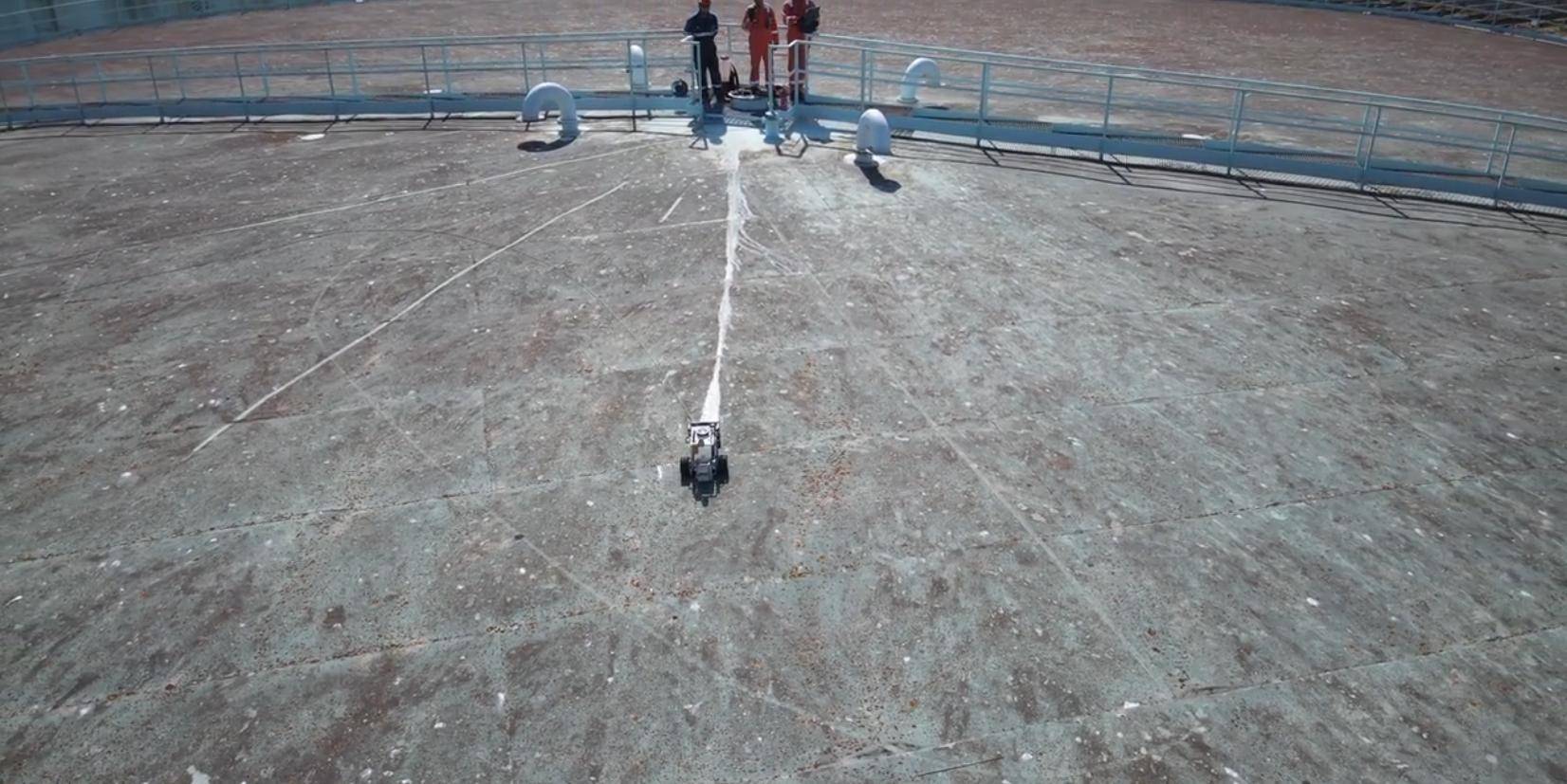

Uncertain floating and fixed roofs
Tank roof inspections involve confined space entry and exposure to EX risk. UT_Rover was designed specifically to eliminate these risks by keeping the operator at a distance.
Operate from a safe area
UT_Rover is portable by a single person (14 kg). It deploys quickly and is remotely operated with live video and real-time data feedback at the control station.

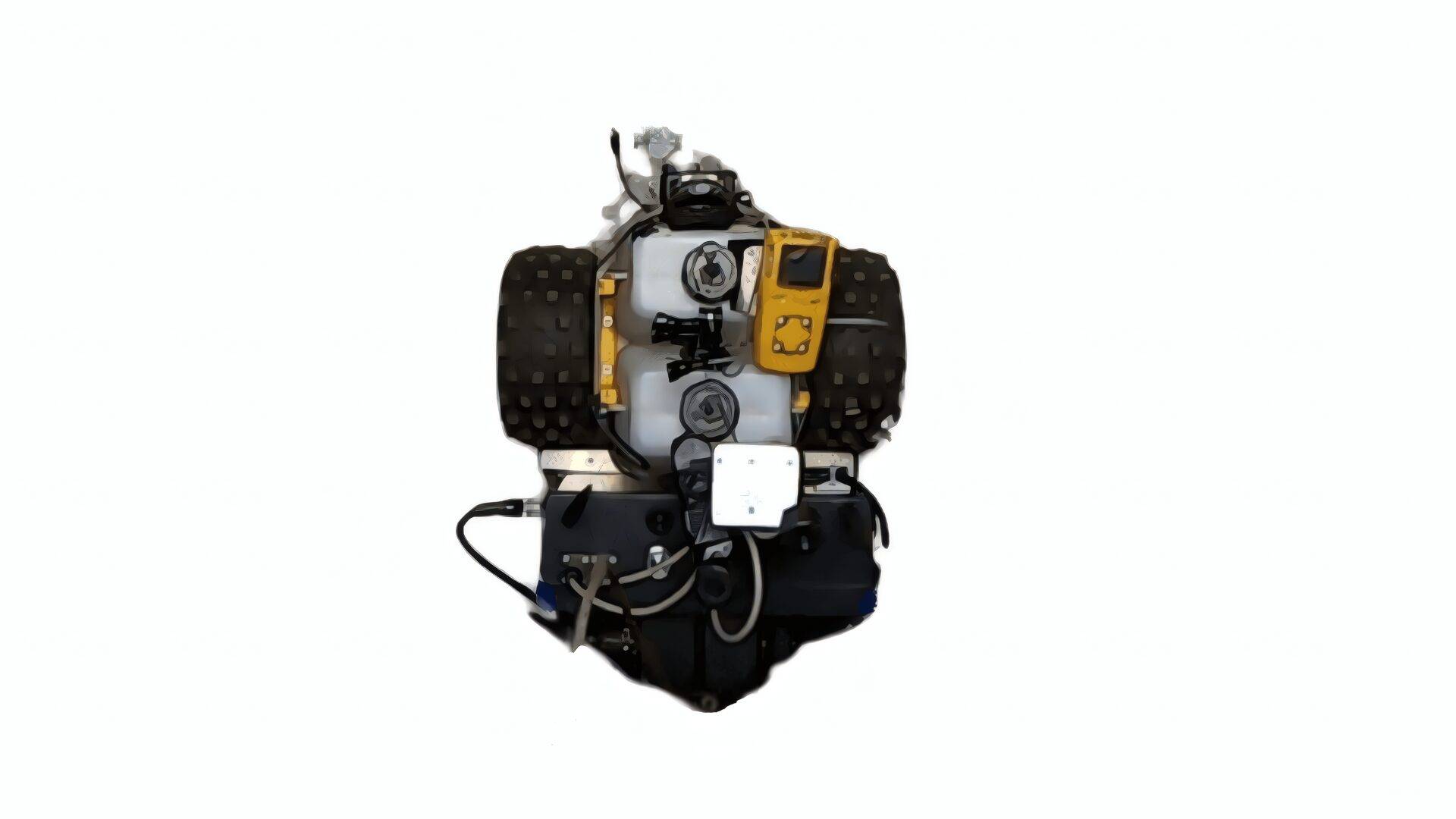

Configure every mission
UT_Rover carries different interchangeable modules depending on inspection needs.

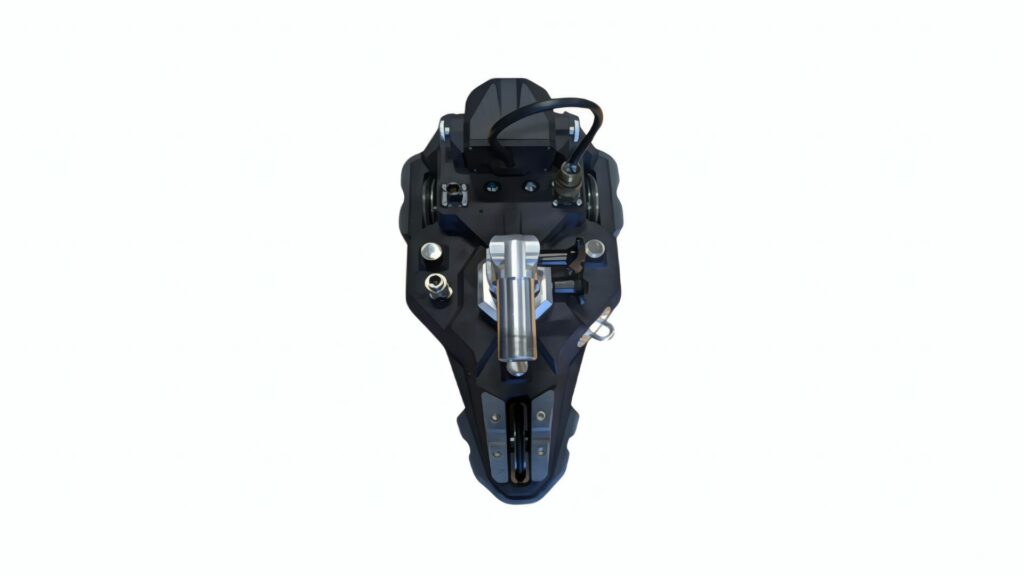

UT module (A-Scan & B-Scan)
Thickness measurements up to 100 m range. 5 MHz dual-crystal probe with integrated encoder. Vertical A-Scan module available.
HD / Ultra HD camera
Long-range visual inspection up to 1 km. Photo and video documentation of inspected areas.
Brushing module
Rotating brush for removing foam and residue. Prepares the surface before measurement without manual intervention.
Gas detector
Onboard detection with alarm reporting to the control station. Secures interventions in suspicious atmospheres.
5 L couplant tank
120 m of B-Scan autonomy. Can also be used for surface cleaning before measurement.
4G remote operation
Remote piloting on sites with network coverage. Extends operational range beyond line of sight.
Datasheet
Carrier
Operating conditions
Ultrasonic measurement
Surfaces & couplant
